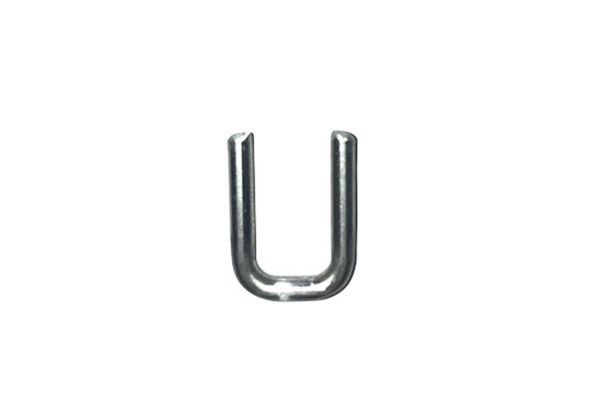

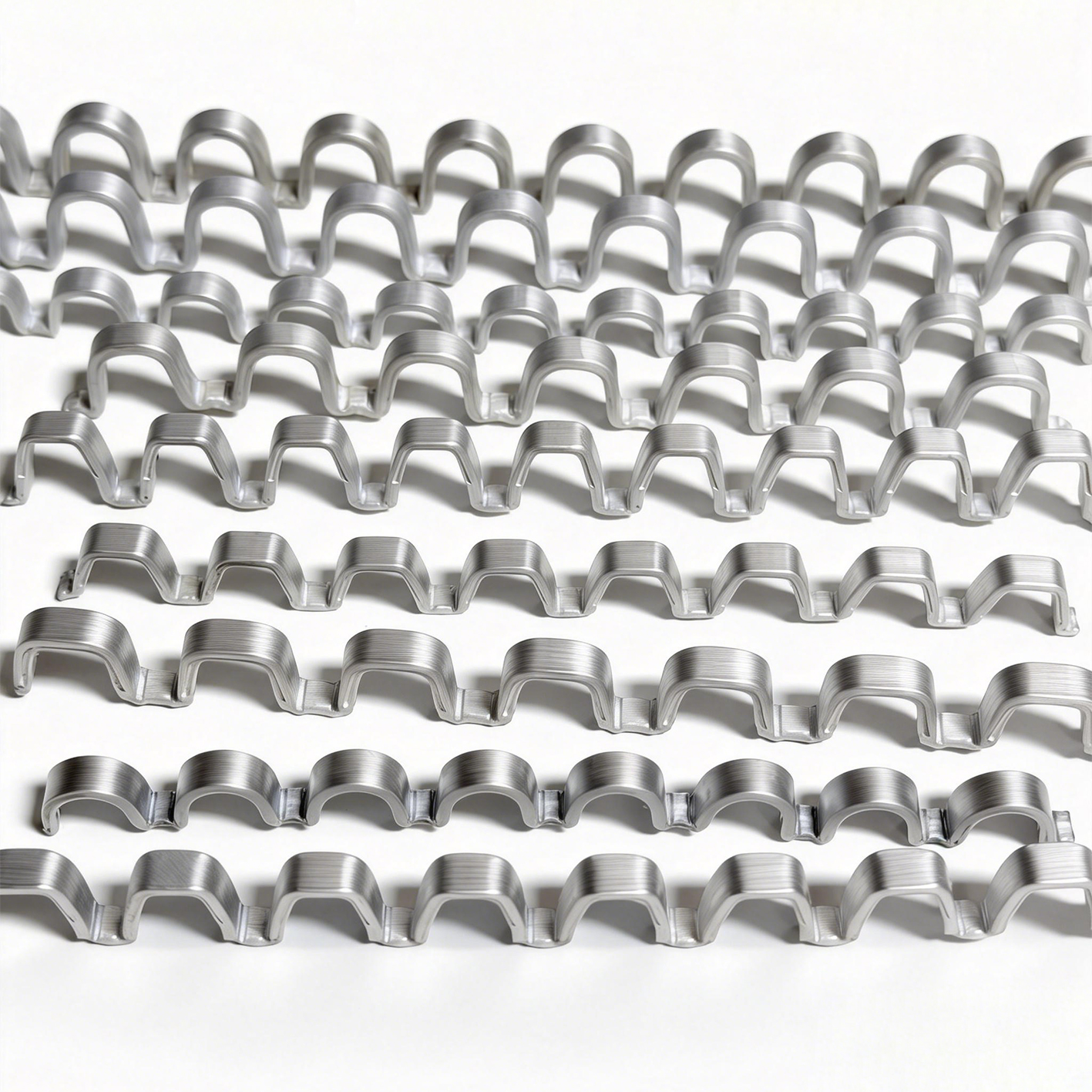

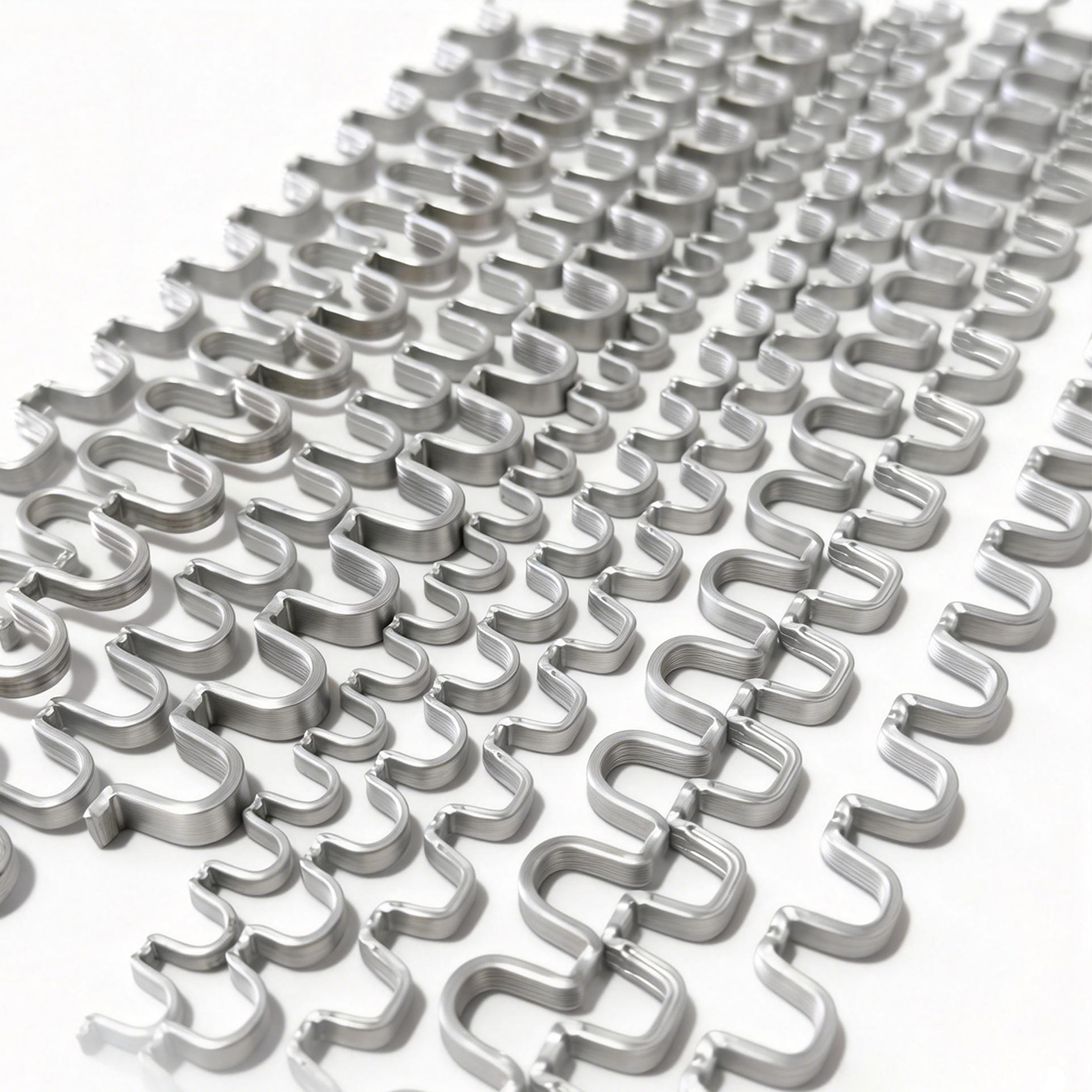

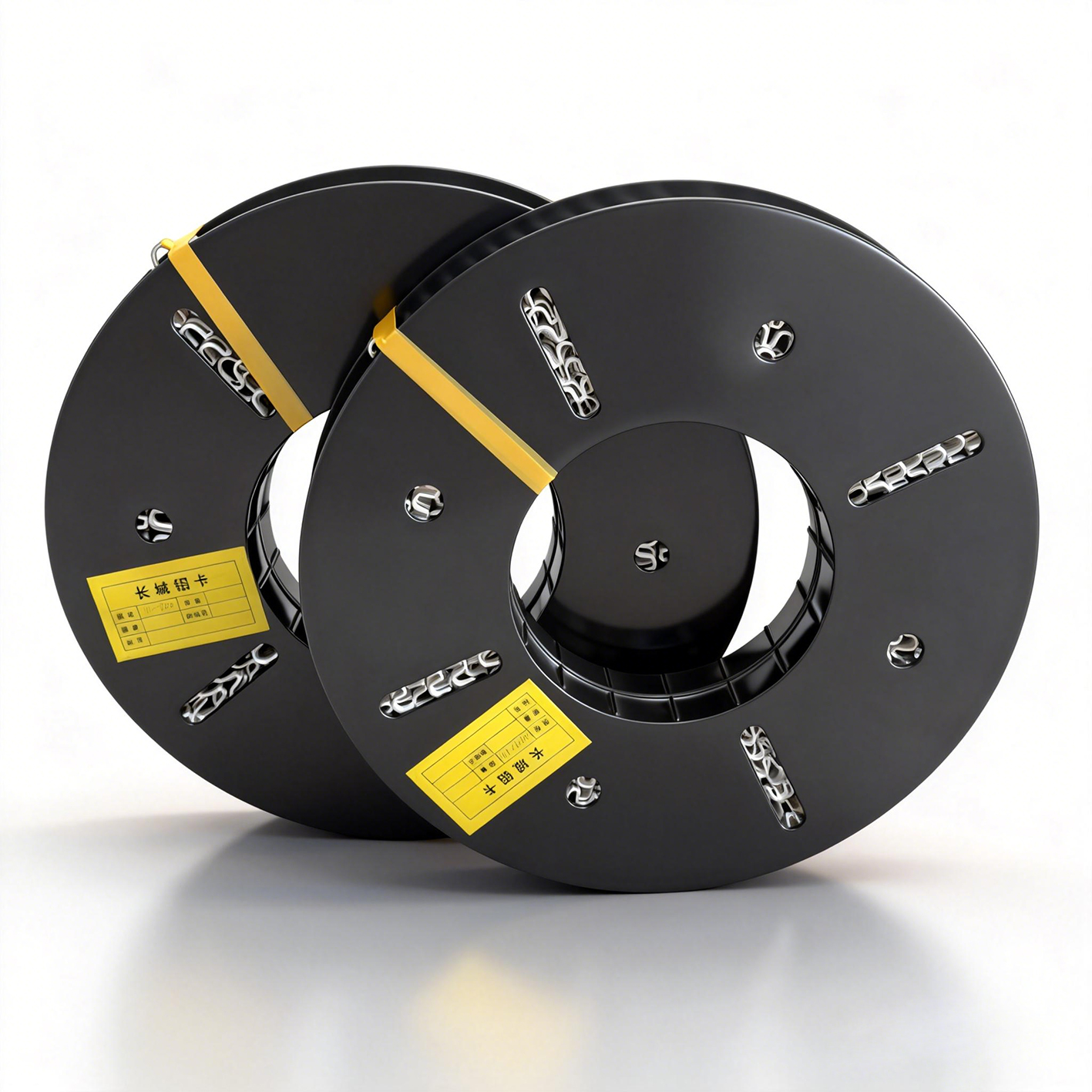

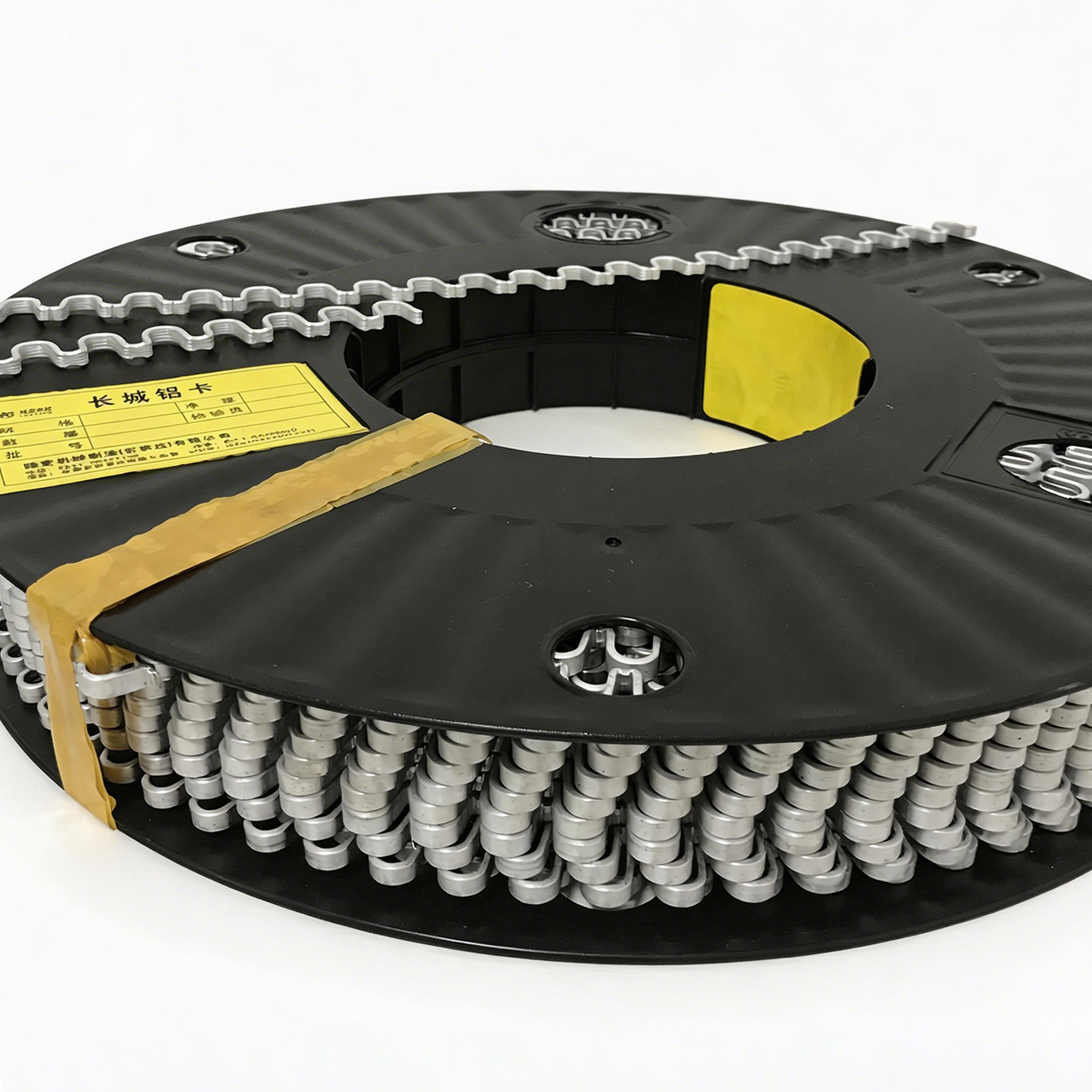

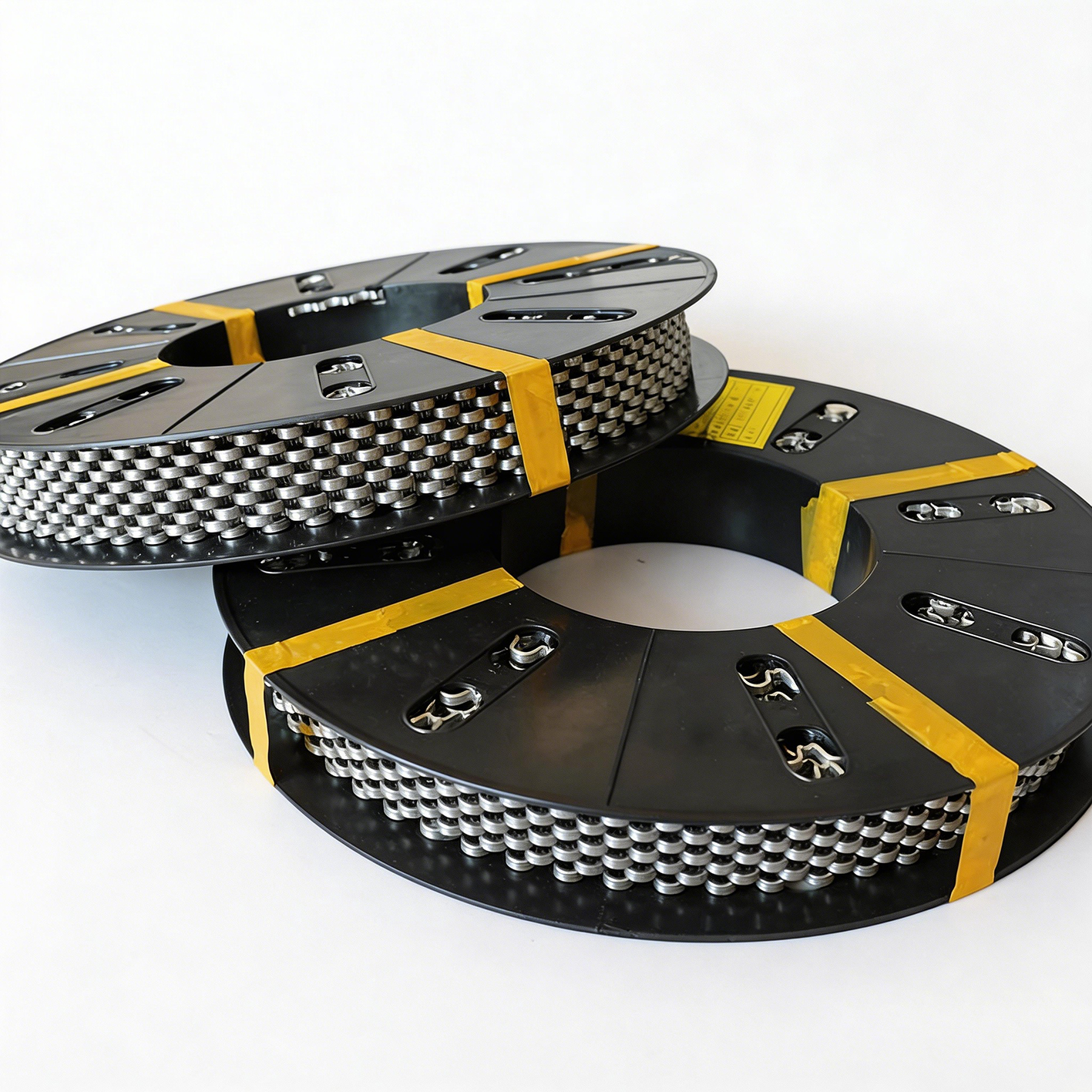

Aluminum Great Wall Shaped R-id Clips1
1. Our R-ID Clips can adopt to some of automatic double-clippers and automatic sealing/clipping machines.
2. Our specification is complete,technical indicators can meet with international standard.
3. Clean and smooth surfaces;Maintaining the value of the machine;Food safety
4. Multiple modes can be made according to customers demand for various models.
Great Wall Aluminum Clips for Sausage Casing Details:
1.Widely used on Sausage,Ham,Poultry,bakery Product,Dairy products,Ready meals,Explosive,Sealing compounds,Pet food;
2.We have complete specifications,such as 15-07, 15-08, 15-09, 15-15, 18-08, 18-09, 18-10, 18-11, 18-12...Clips can be made according to your demand;
3.Different materials and different hardness of clips can be offered to you;
4.Many sizes can be used with any manufacturer's clippers,quite convenient; Applied to POLY CARD, TIPPER TIE, technical indicators exceed the same level of imported products;
5.Well used for sausages,fruits,garlic,edible fungus,anchoring agent and supermarket.
6.Clean and smooth surfaces;Maintaining the value of the machine
Application:
Widely used in flexible packaging sealing such as emulsion explosive charge machine,silicone rubber glue,sausage filling.
Specification:
| Model | Inner height | Pitch | Wire diameter |
| S07-150 | 7（±0.2）㎜ | 11（±0.2）㎜ | 4×1.5（±0.02）㎜ |
| M07-150 | |||
| M11-175 | 11（±0.2）㎜ | 14（±0.2）㎜ | 5×1.75（±0.02）㎜ |
| L09-175 | 9（±0.2）㎜ | 17（±0.2）㎜ | 5×1.75（±0.02）㎜ |
| L10-175 | |||
| L11-200 | 11（±0.2）㎜ | 17（±0.2）㎜ | 5×2（±0.02）㎜ |
| L12-200 | 12（±0.2）㎜ | 17（±0.2）㎜ | 5×2（±0.02）㎜ |
| L13-225 | 13（±0.2）㎜ | 17（±0.2）㎜ | 5×2.25（±0.02）㎜ |
Packaging details:

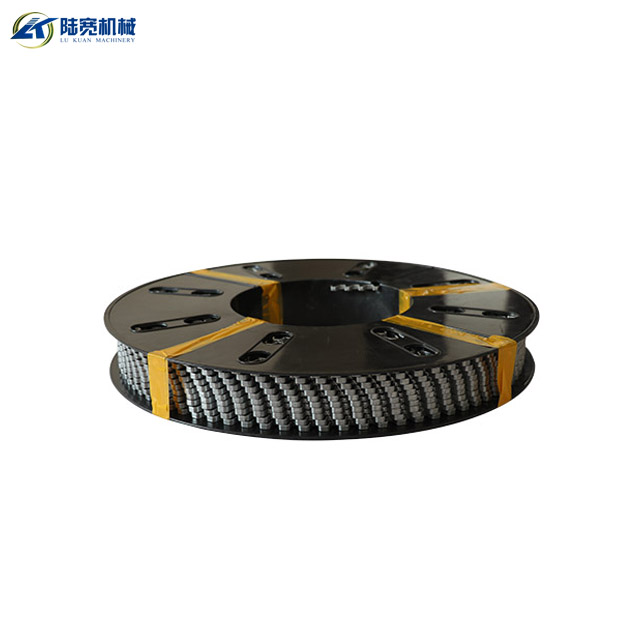

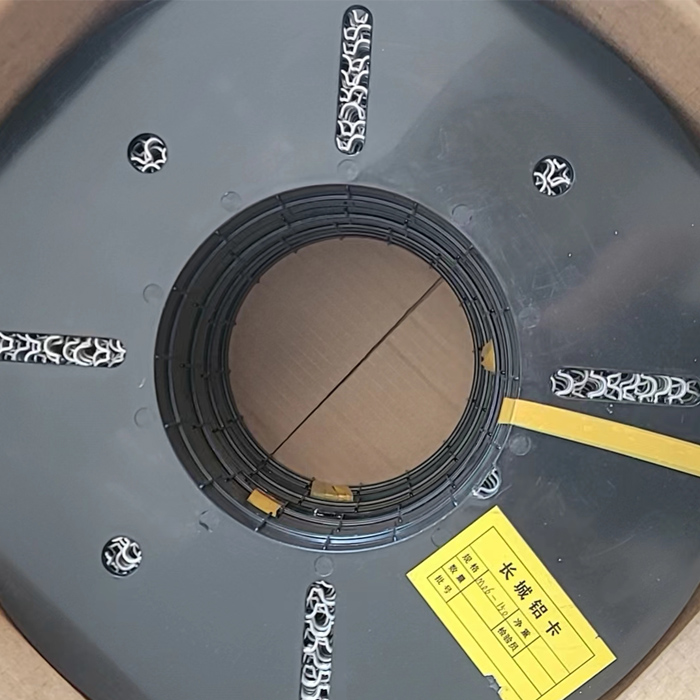

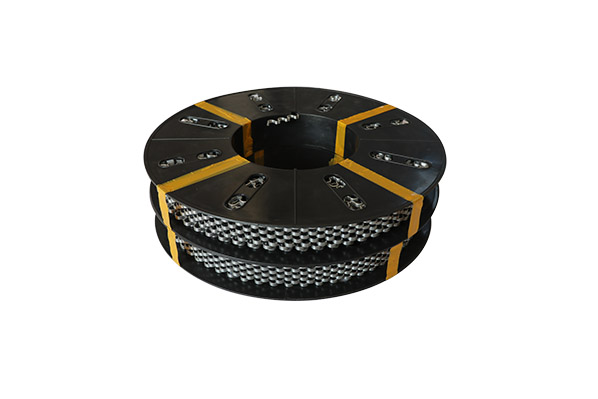

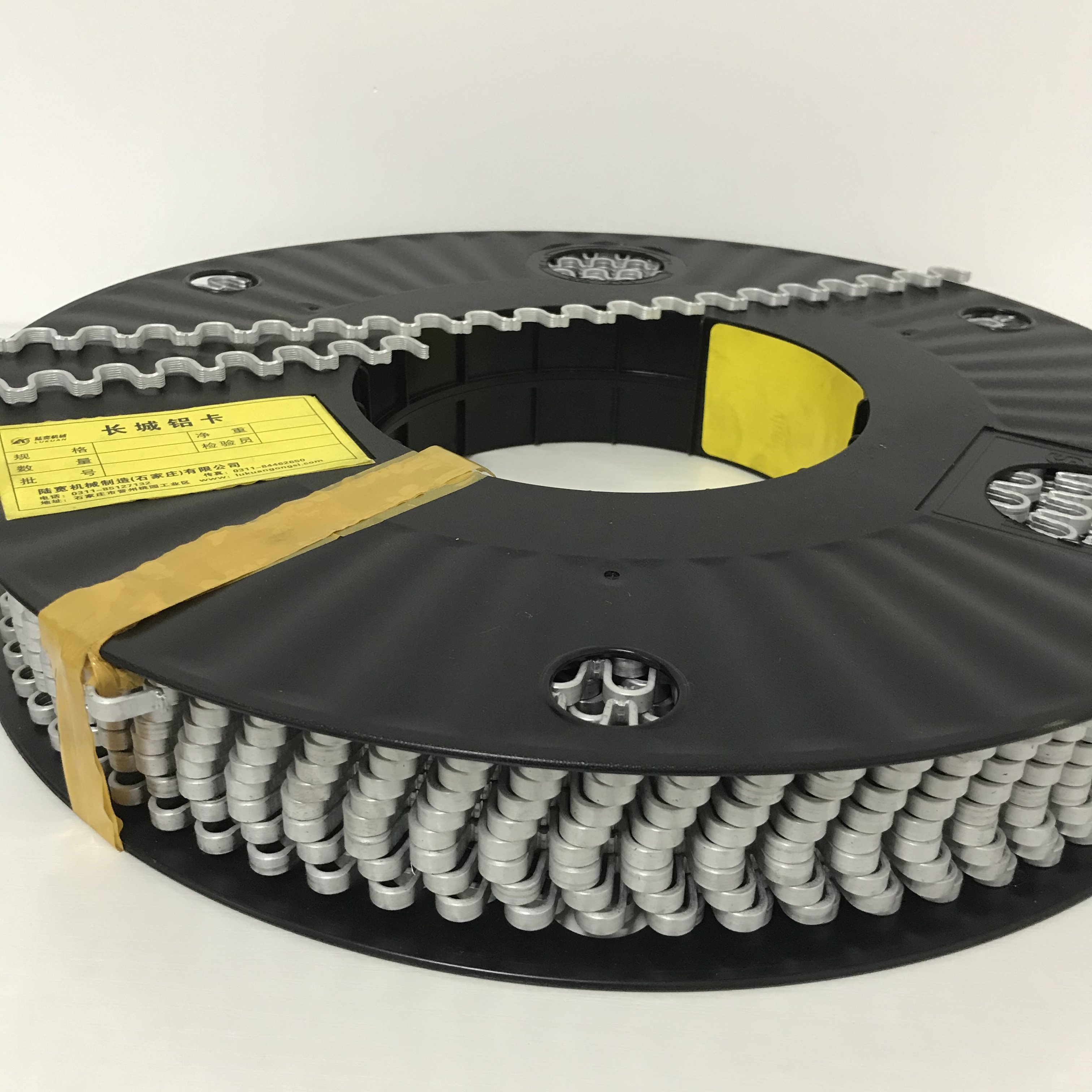

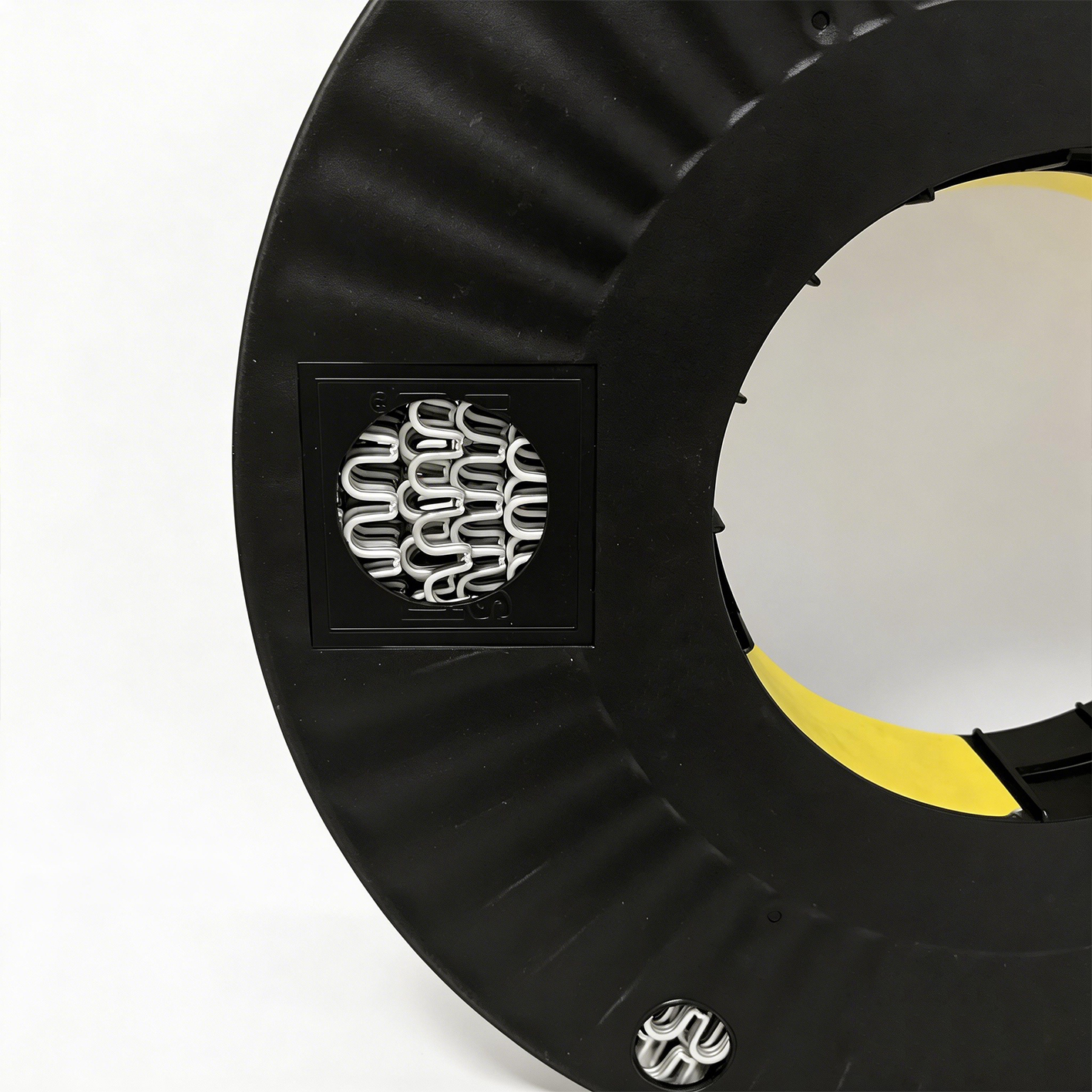

| Model | Pieces/spool | Spools/carton | Pieces/carton |
| S07-150 | 10500 | 5 | 52500 |
| M07-150 | 6800 | 5 | 34000 |
| M11-175 | 4200 | 5 | 21000 |
| L09-175 | 4200 | 5 | 21000 |
| L10-175 | 4000 | 5 | 20000 |
| L11-200 | 3300 | 5 | 16500 |
| L12-200 | 3200 | 5 | 16000 |
| L13-225 | 300 | 5 | 1500 |
if you need other products,pls clicks up:
our company as a Custom Sausage Clip Factory ,provide Great Wall Aluminum Clips for Sausage Casing ,if you need that pls contact us.
