15 Series Aluminum R-clip 15-6 15-7 15-8 15-9 15-10
Our company produces 15 series sausage R clips, including models 15-6, 15-7, 15-8, 15-9, 15-10, etc.

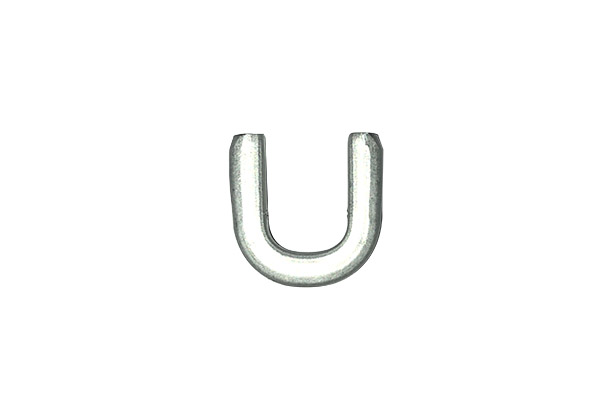

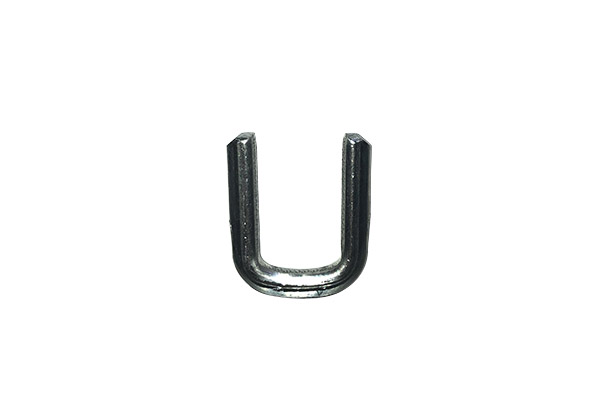

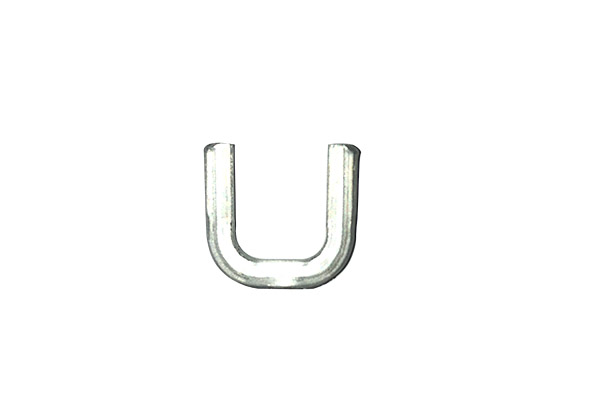

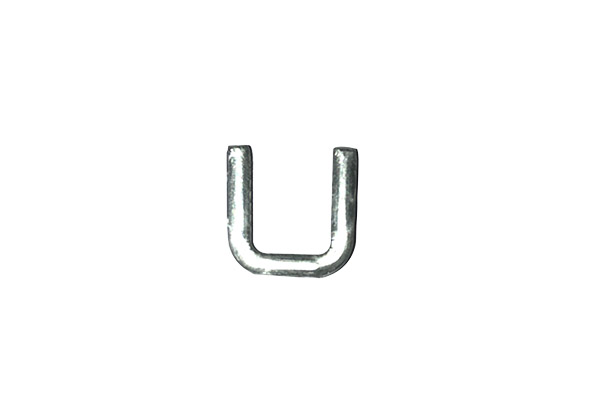

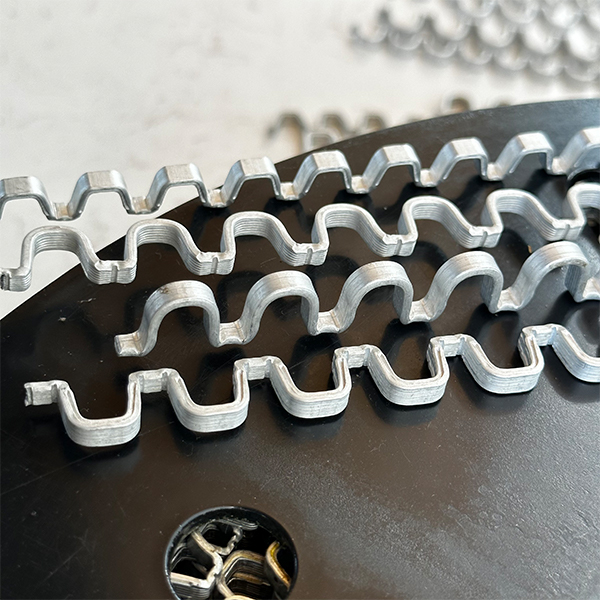

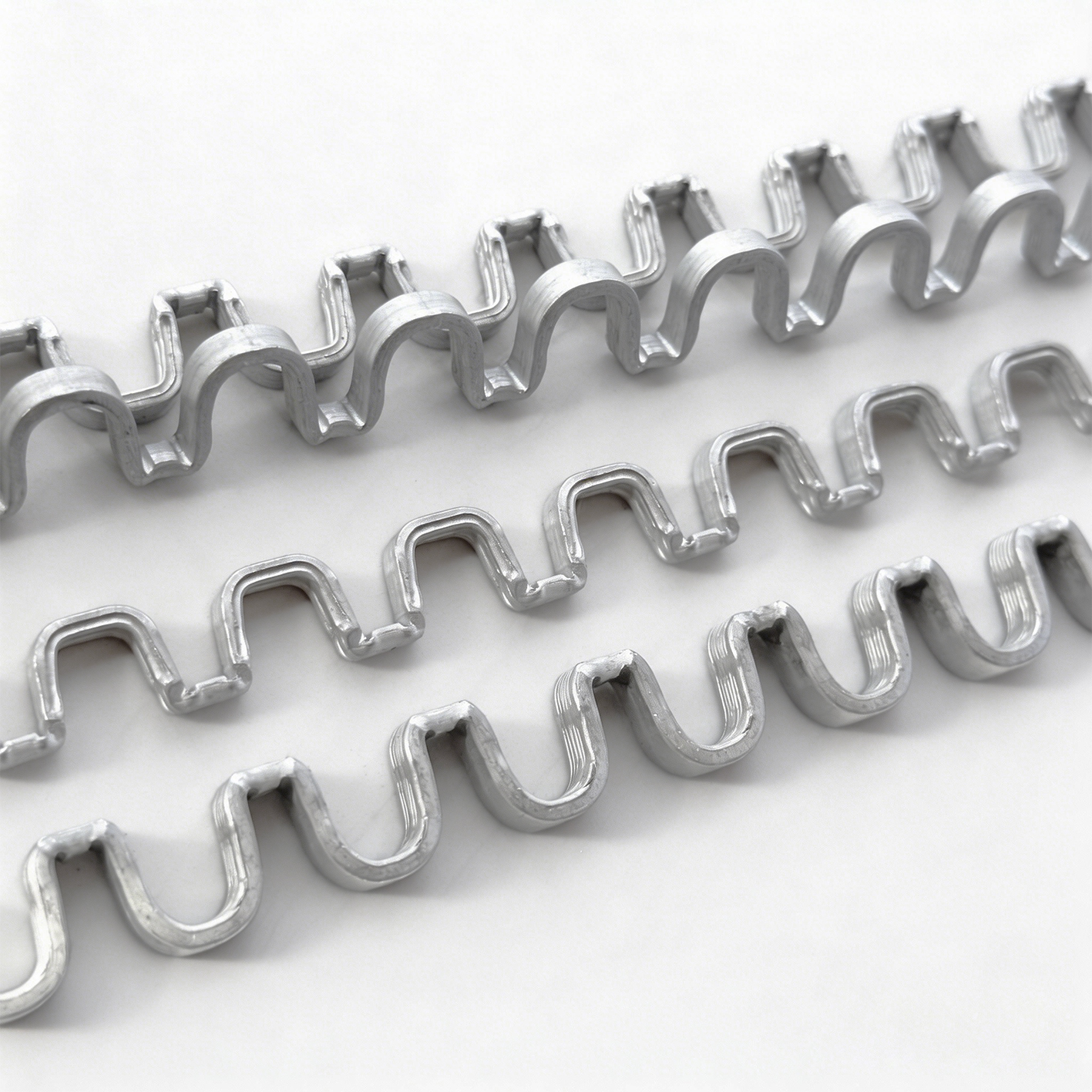

R-clip
Product Details
1.The R-clip produced by our company is suitable for use in punch card machines of various brands and models worldwide. In sausage production, R clip can clipping casings. The choice of clip model depends on the packaged product and the shell used.
2.This product can be widely used for sealing various soft packaging, such as plastic bags, mesh bags, sausage filling, emulsion filling machines, silicone glue filling, etc. Our clip models and specifications are complete, and we can also customize according to the different packaging needs of our customers.
3.The R-type Great Wall aluminum clip has the following advantages:
The raw material used is aluminum wire with extremely high purity, which has high tensile strength and is not easily deformed.
The clip structure is designed with precision, ensuring a tight bite without slipping.
Good sealing performance, sealing food for long-lasting freshness.
The manufacturing process is good, the technical indicators exceed those of equivalent imported products, and meet international standards.
Specifications

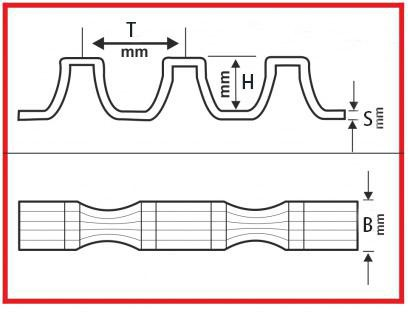

The clip type size consists of four T/H-B*S numbers:
| Model | T-pitch (mm) | B-width (mm) | H-height (mm) | S-thickness (mm) |
| 15-6/4*1.5 | 15 | 4 | 6 | 1.5 |
| 15-7/5*1.5 | 15 | 5 | 7 | 1.5 |
| 15-8/5*1.5 | 15 | 5 | 8 | 1.5 |
| 15-8/5*1.75 | 15 | 5 | 8 | 1.75 |
| 15-9/5*1.5 | 15 | 5 | 9 | 1.5 |
| 15-9/5*1.75 | 15 | 5 | 9 | 1.75 |
| 15-10/5*1.5 | 15 | 5 | 10 | 1.5 |
| 15-10/5*1.75 | 15 | 5 | 10 | 1.75 |

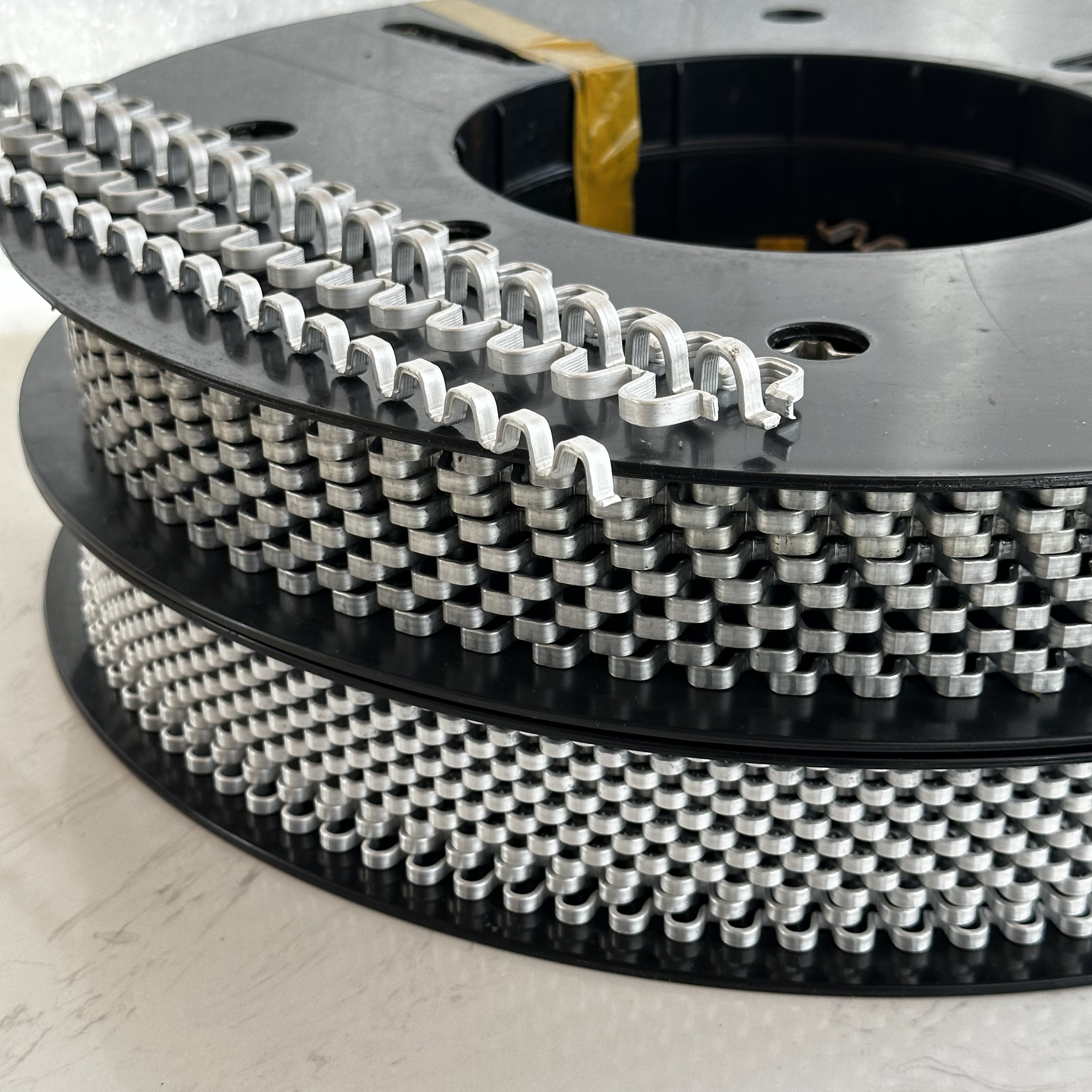

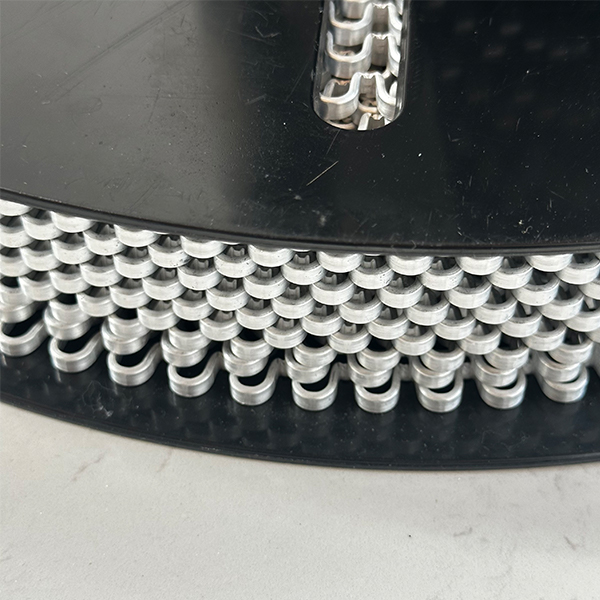

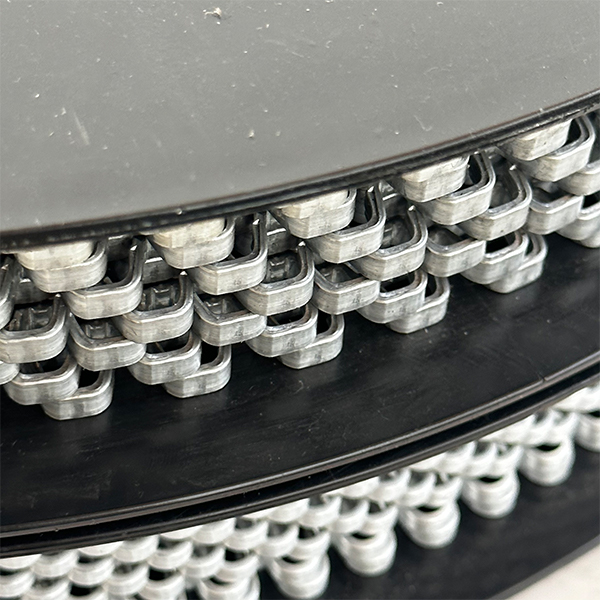

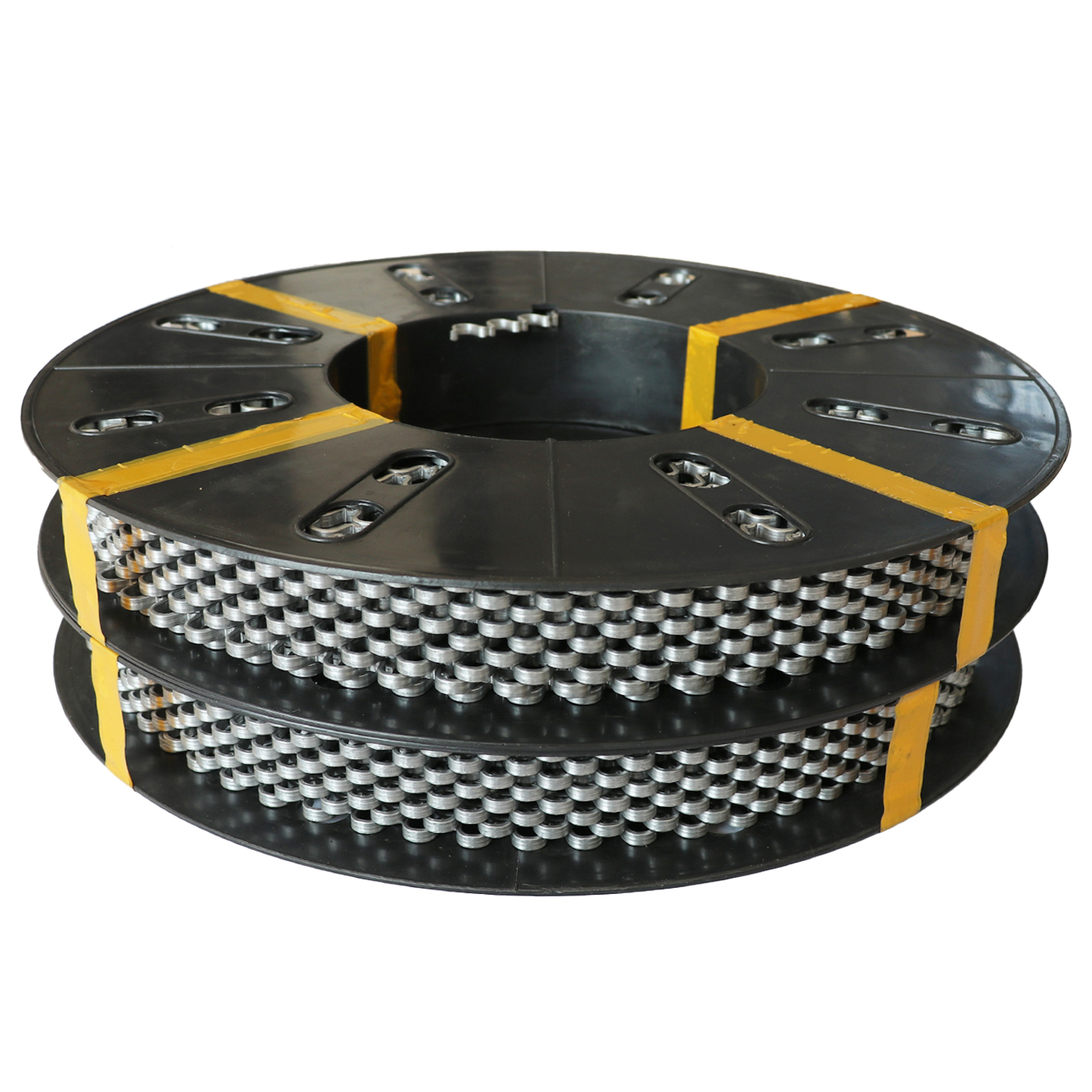

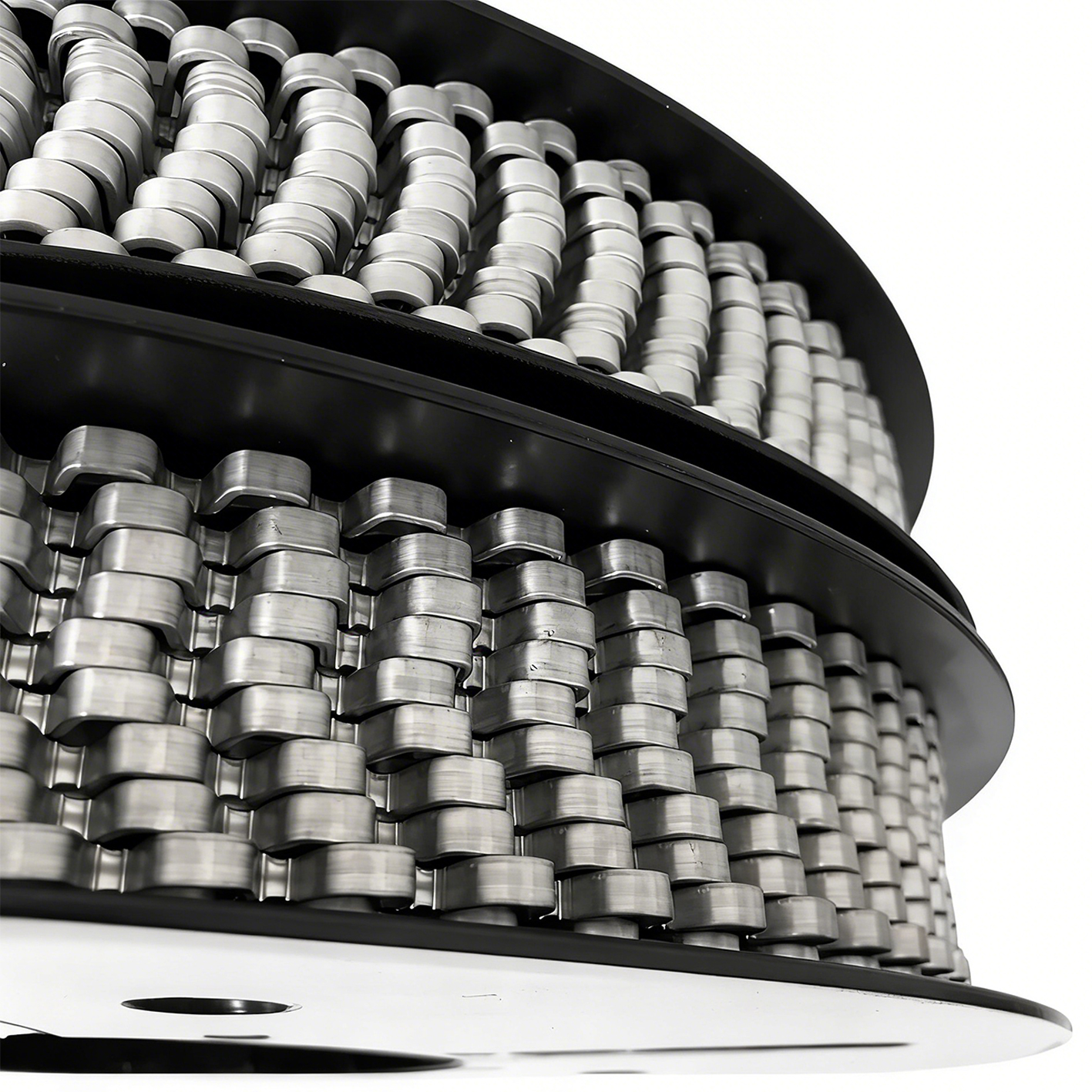

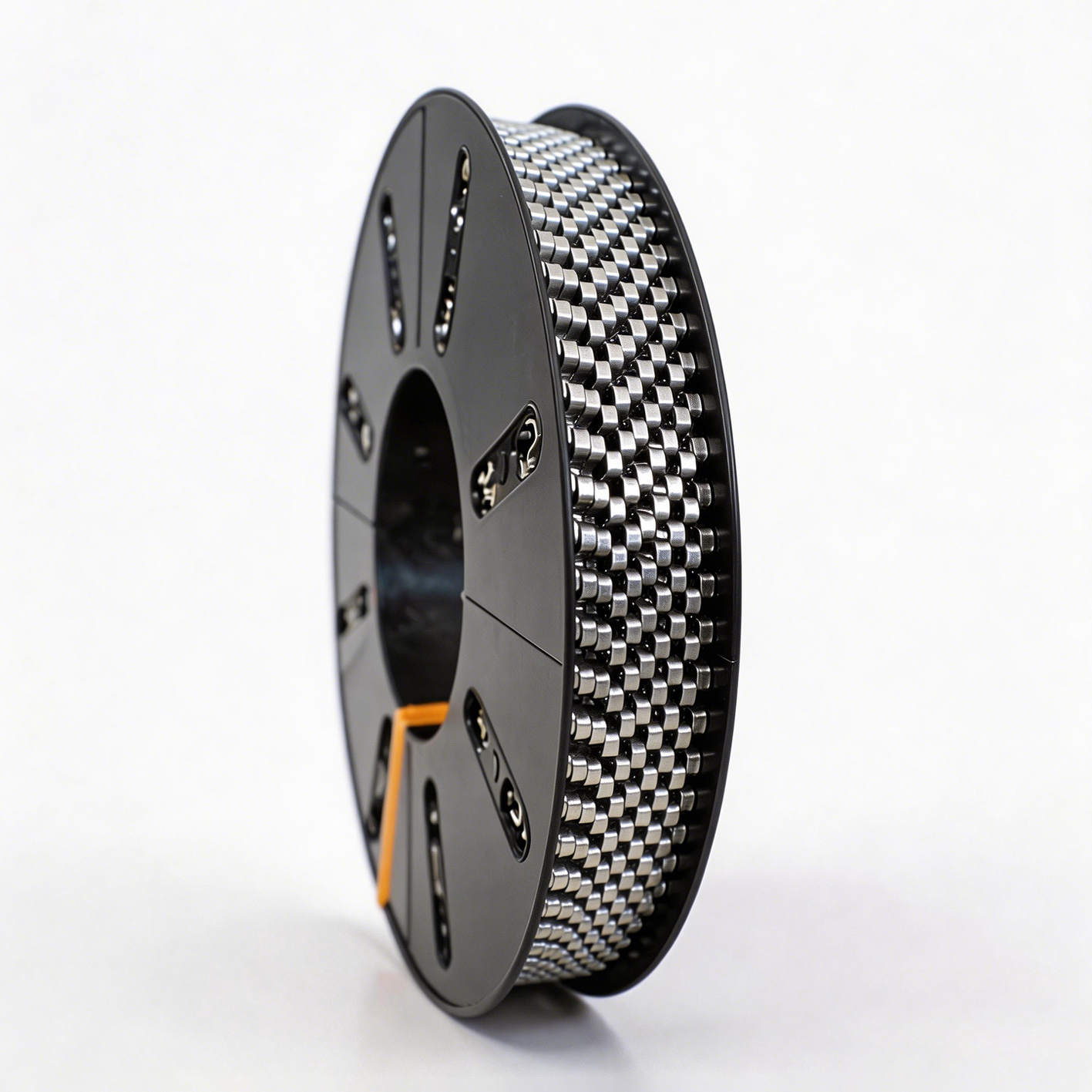

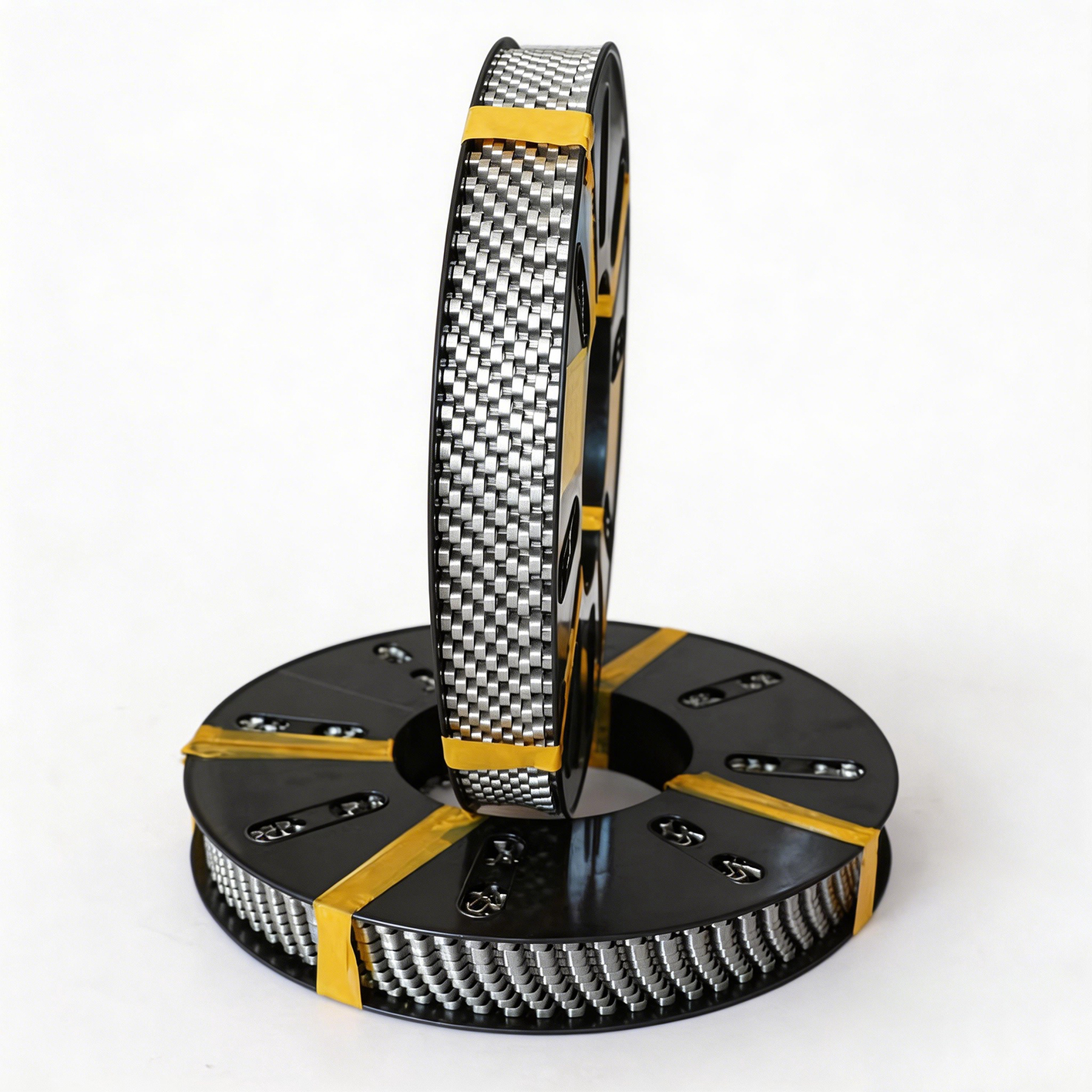

Packaging Details
| Model | Pieces/spool | Spools/carton | Pieces/carton |
| 15/06 | 6000 | 5 | 30000 |
| 15/07 | 6000 | 5 | 30000 |
| 15/08 | 6000 | 5 | 30000 |
| 15/09 | 5000 | 5 | 25000 |
| 15/10 | 5000 | 5 | 25000 |
